1 BIG-IP and OpenShift¶

1.1 Access BIG-IP Web Shell¶

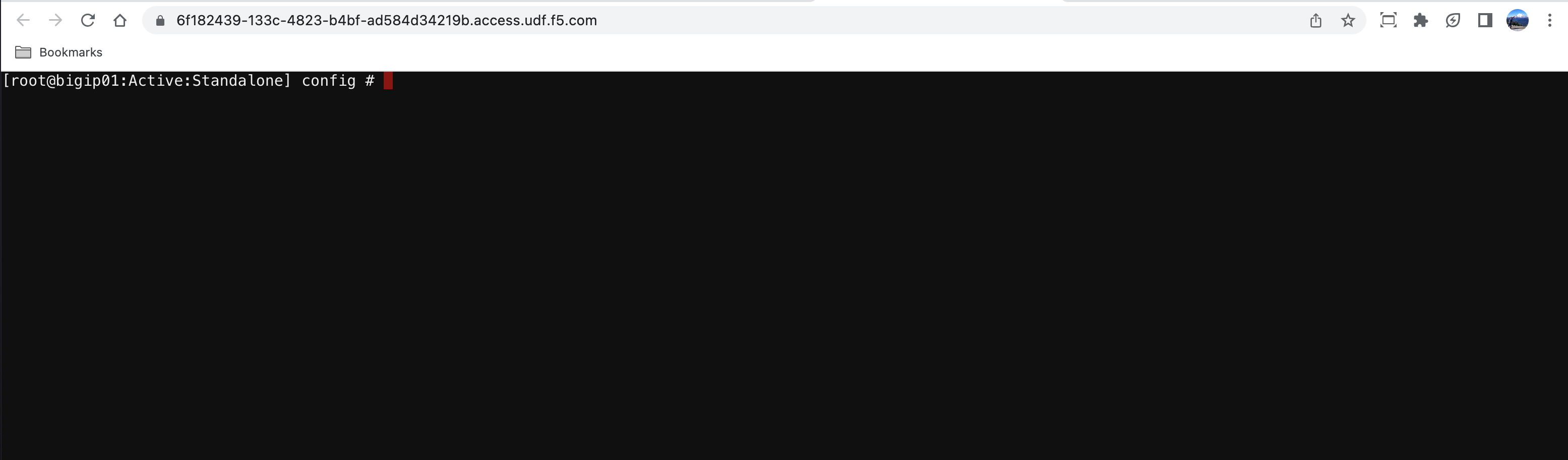

From UDF navigate to the BIG-IP and use the WEB SHELL access method

1.2 Create the OpenShift Partition on BIG-IP¶

Partitions on BIG-IP are used as logical seperation of configuration. Since OpenShift will be the environment where resources are created we will create a BIG-IP partition for this configuration to exist.

Copy and Paste:

# Create OpenShift partition:

tmsh create auth partition OpenShift

Example:

1.3 Create BIG-IP Routes to OpenShift Nodes¶

OpenShift OVN networking without tunnels needs to have routes in place on the BIG-IP so it can send traffic at the OpenShift services. Our OpenShift cluster is 5 nodes (Masters scheduleable), so we create 5 routes.

An OpenShift node (or kubernetes) will be allocated a range of IP address which are assignable from the scheduler. Each of these ranges were allocated as the nodes were brought into the cluster and do not overlap. We can find the ranges assigned to a node after creatation with oc describe nodes or kubectl describe nodes

Copy and Paste:

# Create Routes for nodes:

tmsh create /net route 10.244.0.0/24 gw 10.1.10.6
tmsh create /net route 10.244.1.0/24 gw 10.1.10.7
tmsh create /net route 10.244.2.0/24 gw 10.1.10.8
tmsh create /net route 10.244.3.0/24 gw 10.1.10.9
tmsh create /net route 10.244.4.0/24 gw 10.1.10.10

Example:

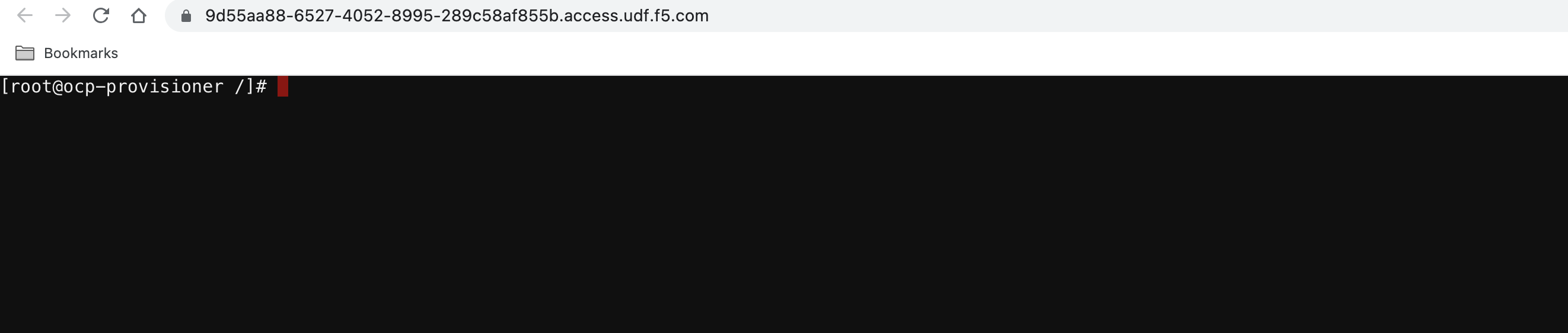

1.4 Access ocp-provisioner Web Shell¶

From UDF navigate to the ocp-provisioner and use the web shell access method

1.5 Switch linux user to cloud-user¶

cloud-user is preconfigured with access to OpenShift resources, moving from root to cloud-user to access OpenShift.

Copy and Paste:

# Switch user to cloud-user

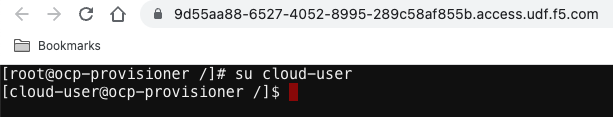

su cloud-user

Example:

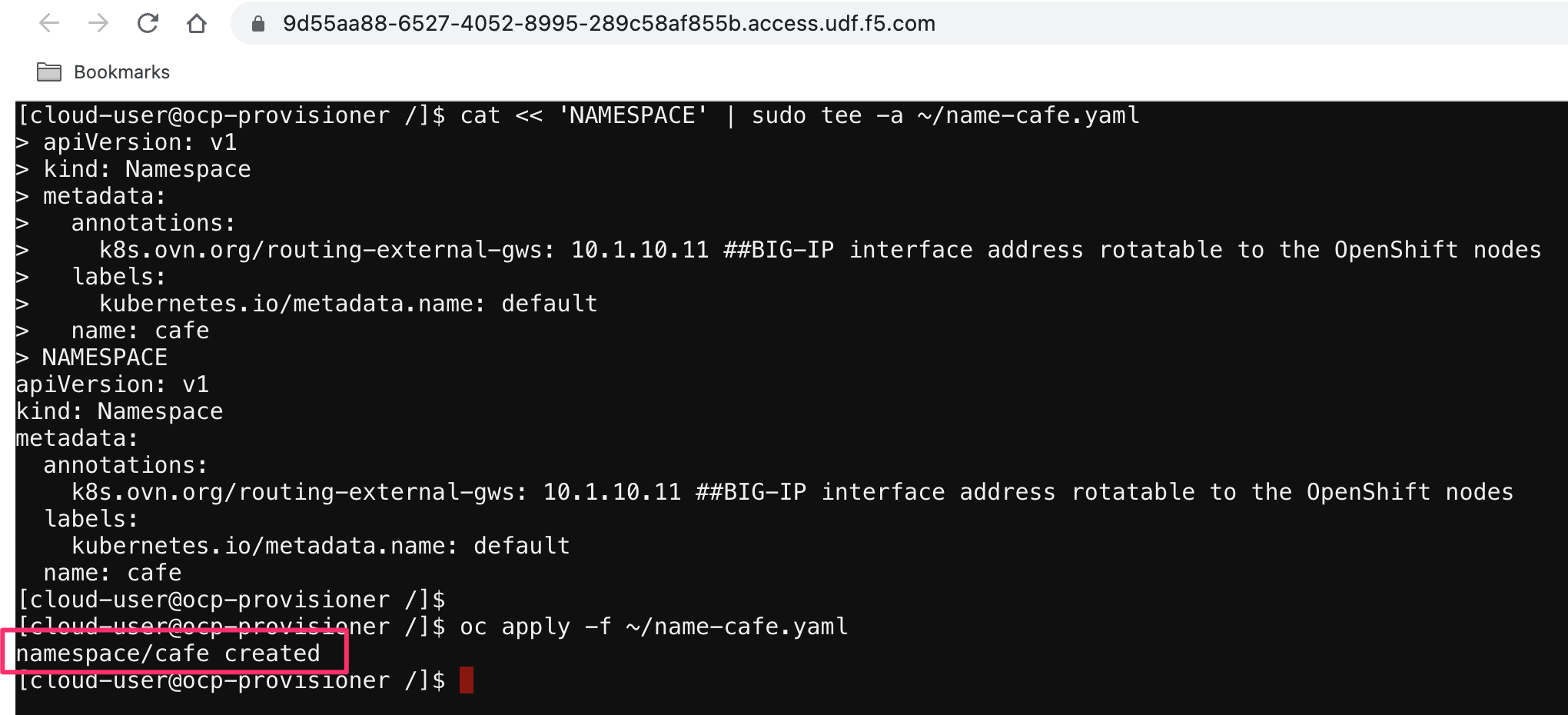

1.6 Create an OpenShift namespace¶

Similar to BIG-IP partitions, OpenShift (and kubernetes) have a logical organization object of a namespace. We will be creating resources in a single namespace, which needs to be created first.

The namespace contains an annotation for gateways, the address that is contained is this annotation is the self-ip of the BIG-IP in our lab. This tells OpenShift that traffic should be returned to this IP address, creating our traffic flow

Copy and Paste:

# Create namespace and apply to Openshift

cat << 'NAMESPACE' | sudo tee -a ~/name-cafe.yaml
apiVersion: v1
kind: Namespace
metadata:
  annotations:
    k8s.ovn.org/routing-external-gws: 10.1.10.11 ##BIG-IP interface address rotatable to the OpenShift nodes
  labels:
    kubernetes.io/metadata.name: default
  name: cafe
NAMESPACE

oc apply -f ~/name-cafe.yaml

Example:

1.7 Create a BIG-IP controller secret¶

The BIG-IP controller (Container Ingress Services, Next Generation Router) needs credentials for accessing the BIG-IP to build our objects. This creates the OpenShift secret containing the credentials.

Copy and Paste:

# Create secret for BIG-IP Controller

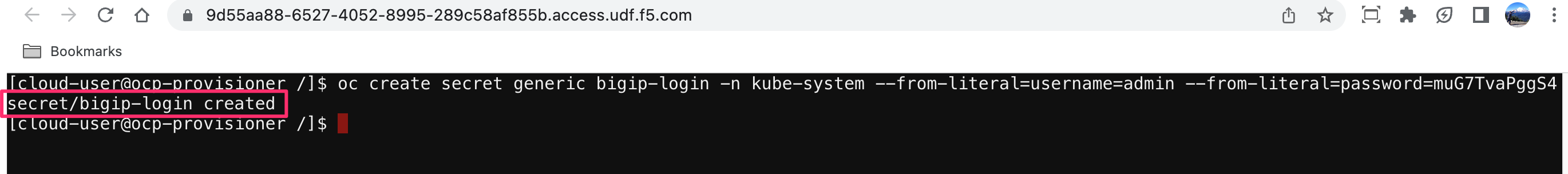

oc create secret generic bigip-login -n kube-system --from-literal=username=admin --from-literal=password=muG7TvaPggS4

Example:

1.8 Create a BIG-IP service account¶

The BIG-IP controller (Container Ingress Services, Next Generation Router) needs a service account that can monitor the OpenShift resources.

Copy and Paste:

# Create service account for BIG-IP Controller

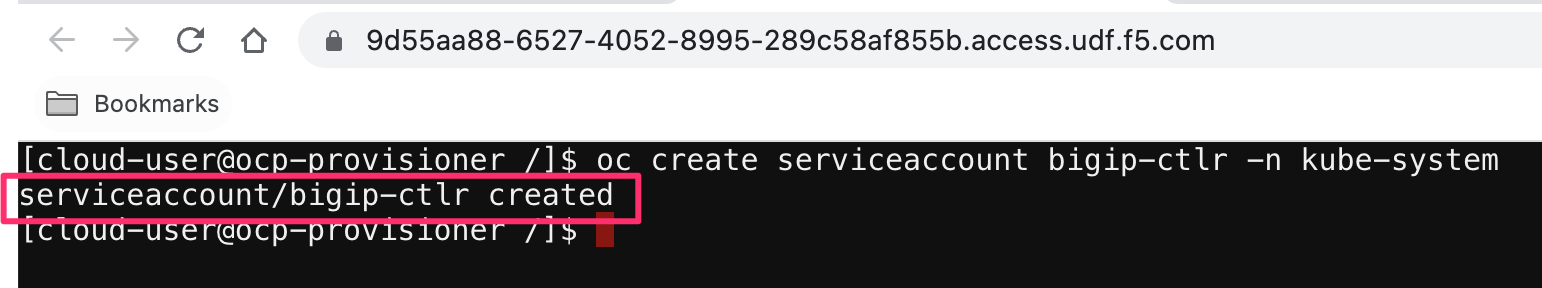

oc create serviceaccount bigip-ctlr -n kube-system

Example:

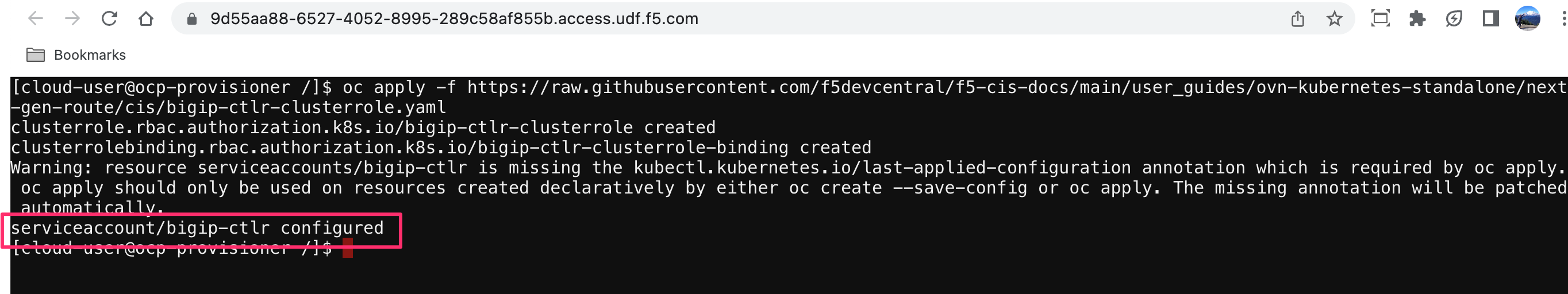

1.9 Create OpenShift cluster role and cluster role binding¶

Weve created the service account, now we need to bind some authorizations and bind the two (role and authoriaztions) together.

Copy and Paste:

# Create cluster role and cluster role binding

oc apply -f https://raw.githubusercontent.com/f5devcentral/f5-cis-docs/main/user_guides/ovn-kubernetes-standalone/next-gen-route/cis/bigip-ctlr-clusterrole.yaml

Example:

1.10 BIG-IP controller custom resource definitions¶

Custom resources are extensions of the Kubernetes API. BIG-IP CIS can utilize custom resource definitions to bring more BIG-IP features into the Router or Ingress configuration through the use of Virtual Servers.

To utilize these new resources we are bringing their definitions into our OpenShift cluster.

Copy and Paste:

# Create custom resource definitions extending OpenShift

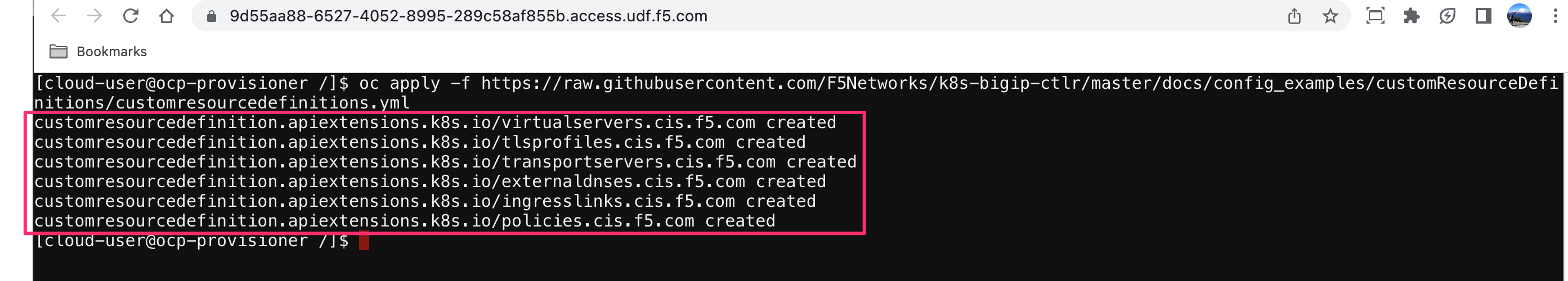

oc apply -f https://raw.githubusercontent.com/F5Networks/k8s-bigip-ctlr/master/docs/config_examples/customResourceDefinitions/customresourcedefinitions.yml

Example:

1.11 BIG-IP controller global configmap¶

The global configmap is used to create the BIG-IP virtual (vserverAddr). Since OpenShift routes are a shared VIP with routing based off layer 7 attributes BIG-IP needs to have a VIP to attach these routes with. With a recent release, you now have the ability to have mulitple BIG-IP VIPs definitions for individual namespaces, this allows for granular traffic based on a per-namespace concept.

Copy and Paste:

# Create Global configmap for the cafe namespace

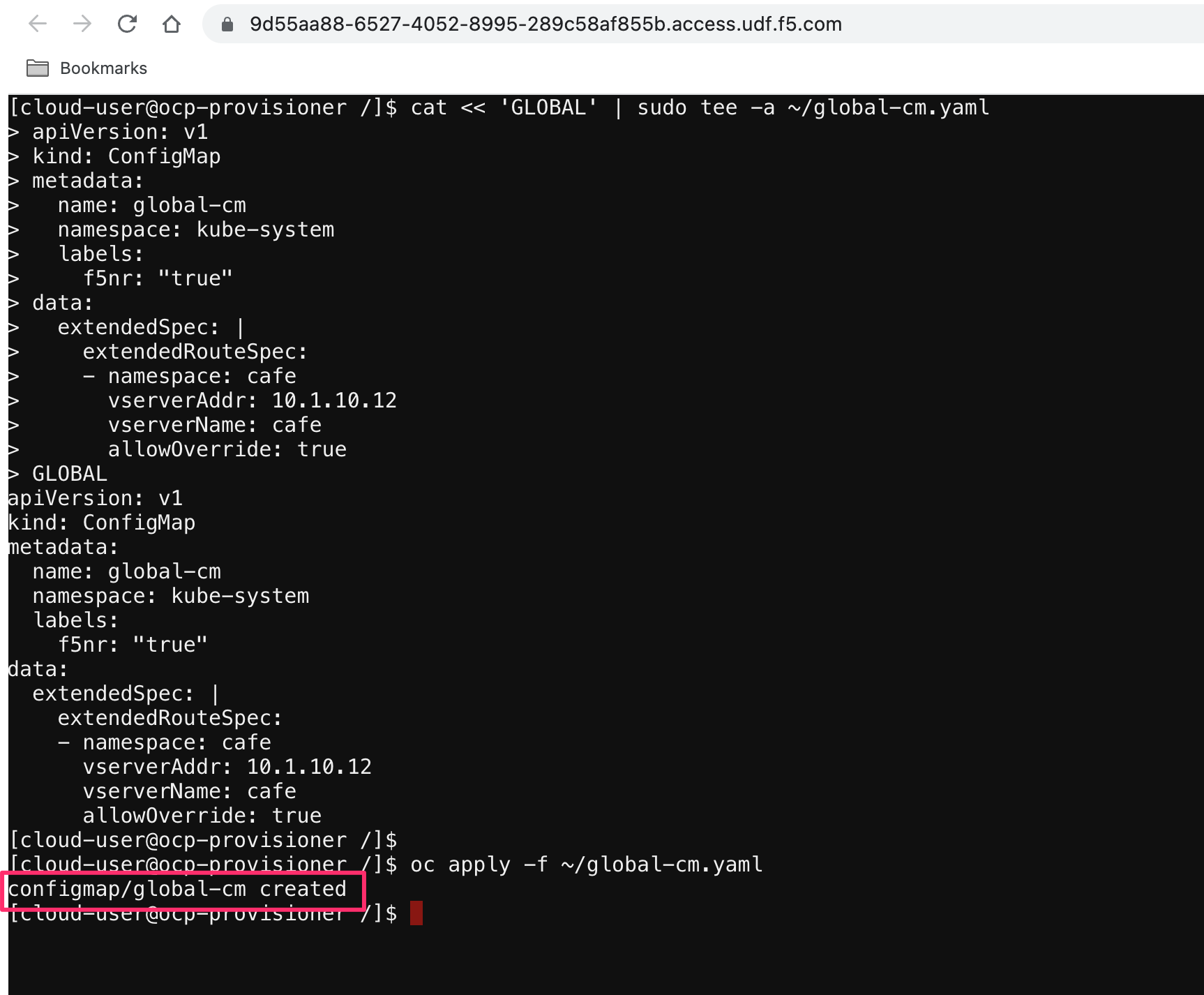

cat << 'GLOBAL' | sudo tee -a ~/global-cm.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: global-cm
  namespace: kube-system
  labels:
    f5nr: "true"
data:
  extendedSpec: |
    extendedRouteSpec:
    - namespace: cafe
      vserverAddr: 10.1.10.12
      vserverName: cafe
      allowOverride: true
GLOBAL

oc apply -f ~/global-cm.yaml

Example:

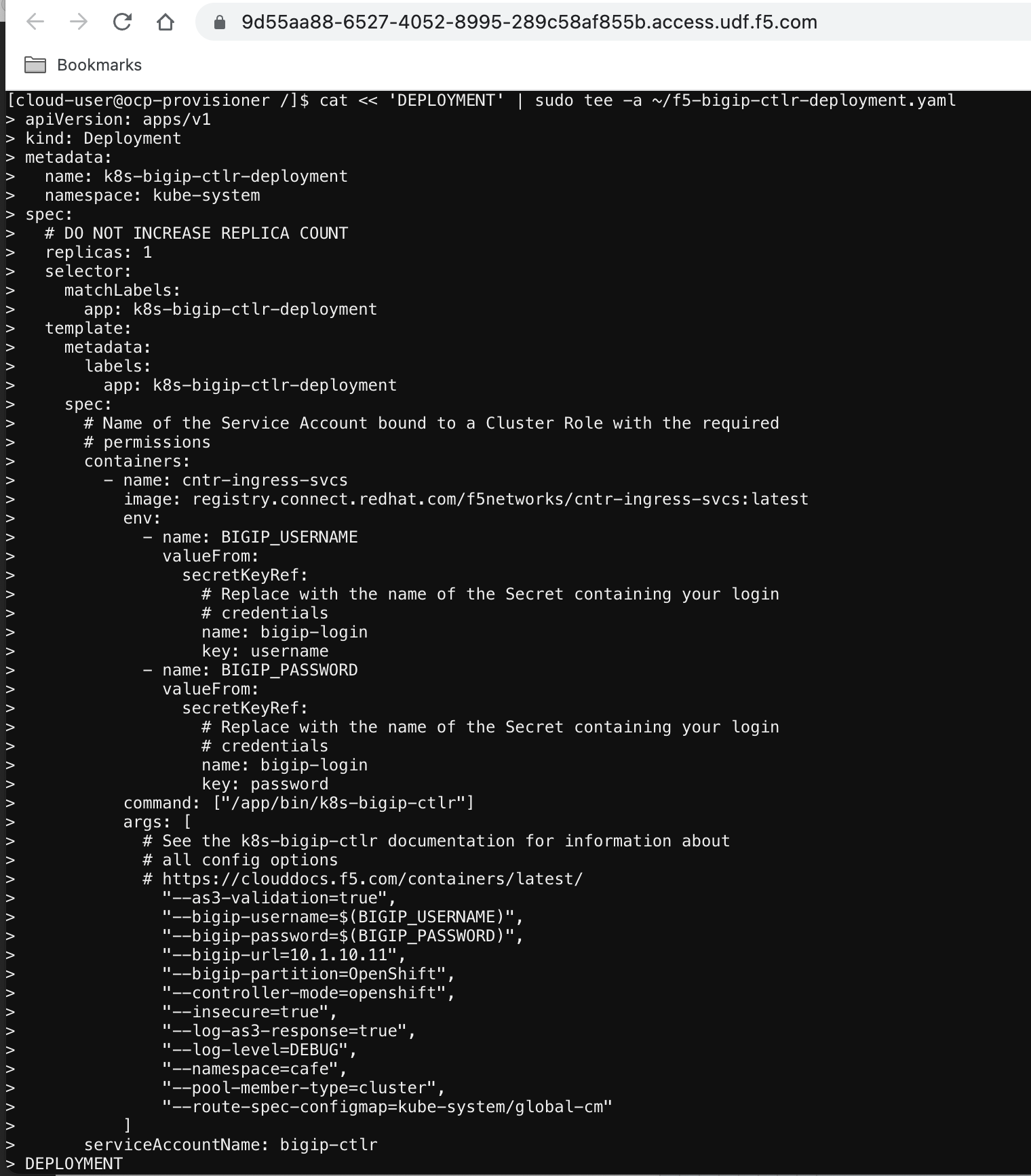

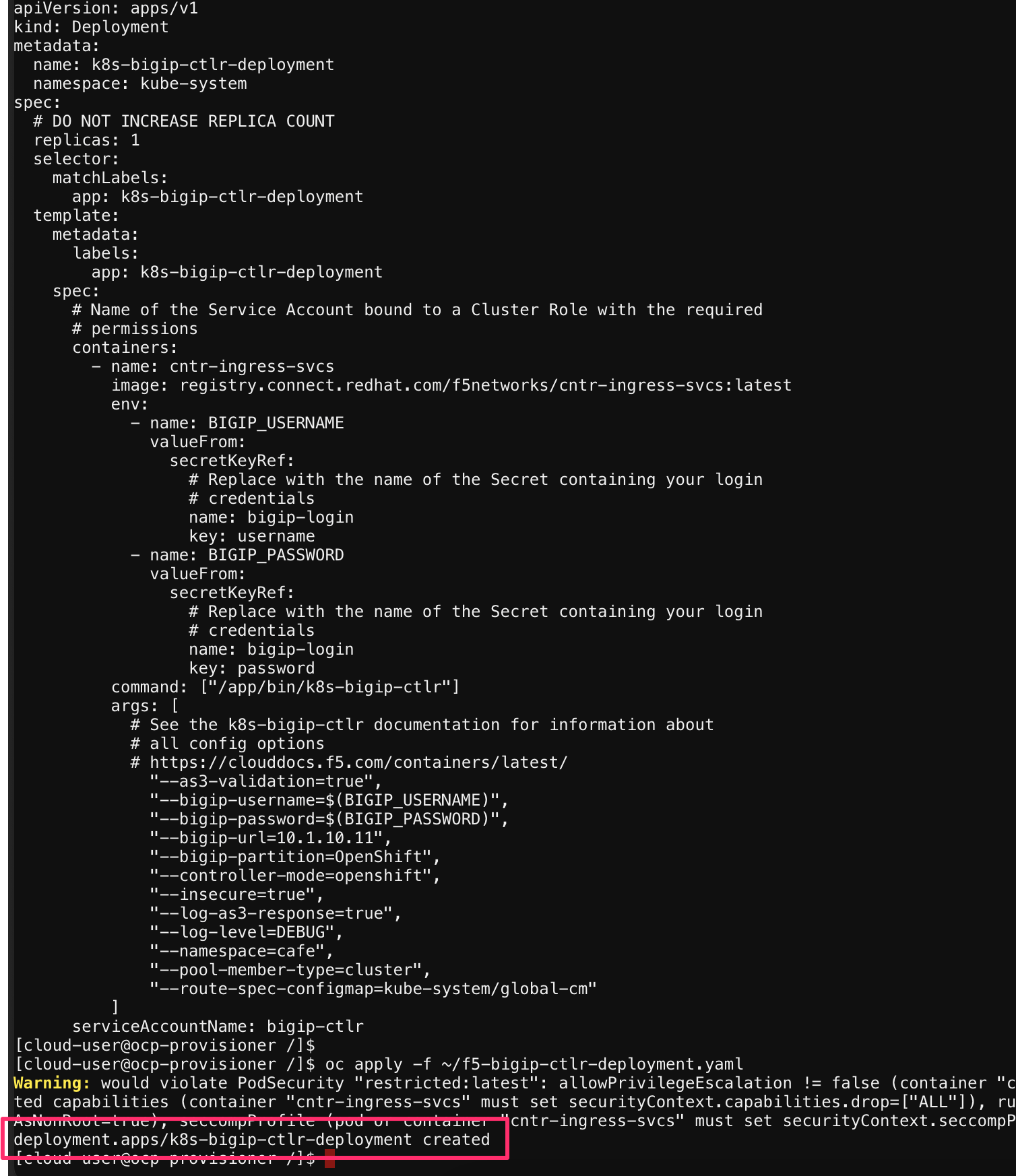

1.12 BIG-IP controller deployment¶

The BIG-IP controller (Container Ingress Services, Next Generation Router) is the tool which take OpenShift events, converts them to BIG-IP configuration, and maintains the state. CIS constantly monitors the OpenShift environment for resource changes, like pods scaling, or service changes and reflects the changes in the BIG-IP.

Information about: Configuration Parameters

Copy and Paste:

# Create f5-bigip-ctlr-deployment.yaml:

cat << 'DEPLOYMENT' | sudo tee -a ~/f5-bigip-ctlr-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: k8s-bigip-ctlr-deployment
  namespace: kube-system
spec:
  # DO NOT INCREASE REPLICA COUNT
  replicas: 1
  selector:
    matchLabels:
      app: k8s-bigip-ctlr-deployment
  template:
    metadata:
      labels:
        app: k8s-bigip-ctlr-deployment
    spec:
      # Name of the Service Account bound to a Cluster Role with the required
      # permissions
      containers:
        - name: cntr-ingress-svcs
          image: registry.connect.redhat.com/f5networks/cntr-ingress-svcs:latest
          env:
            - name: BIGIP_USERNAME
              valueFrom:
                secretKeyRef:
                  # Replace with the name of the Secret containing your login
                  # credentials
                  name: bigip-login
                  key: username
            - name: BIGIP_PASSWORD
              valueFrom:
                secretKeyRef:
                  # Replace with the name of the Secret containing your login
                  # credentials
                  name: bigip-login
                  key: password
          command: ["/app/bin/k8s-bigip-ctlr"]
          args: [
            # See the k8s-bigip-ctlr documentation for information about
            # all config options
            # https://clouddocs.f5.com/containers/latest/
              "--as3-validation=true",
              "--bigip-username=$(BIGIP_USERNAME)",
              "--bigip-password=$(BIGIP_PASSWORD)",
              "--bigip-url=10.1.10.11",
              "--bigip-partition=OpenShift",
              "--controller-mode=openshift",
              "--insecure=true",
              "--log-as3-response=true",
              "--log-level=DEBUG",
              "--namespace=cafe",
              "--pool-member-type=cluster",
              "--route-spec-configmap=kube-system/global-cm"
          ]
      serviceAccountName: bigip-ctlr
DEPLOYMENT

oc apply -f ~/f5-bigip-ctlr-deployment.yaml

Example:

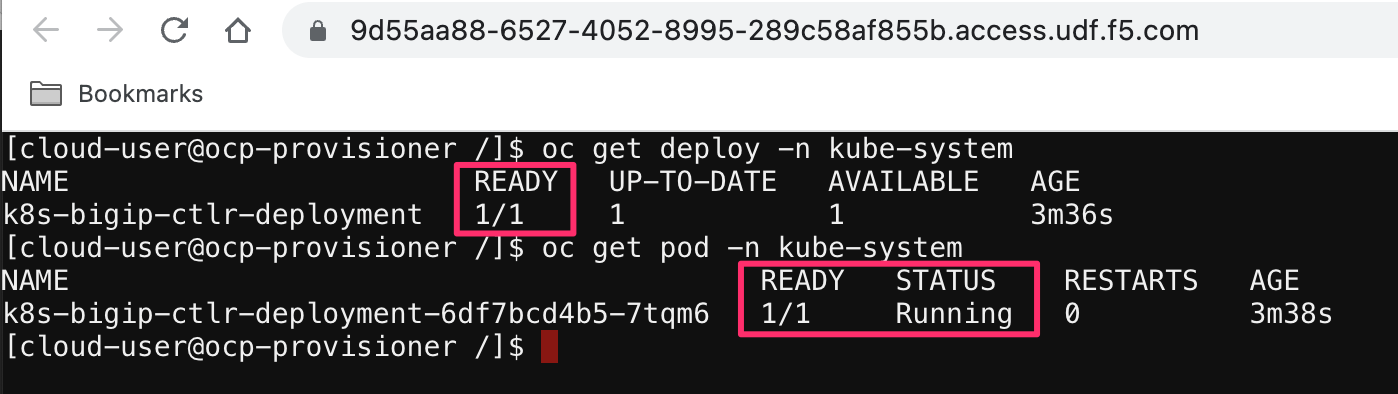

1.13 BIG-IP controller verification¶

The BIG-IP controller deployment is a service running inside the OpenShift environment, after the deployment is complete we can verify that the service is running.

Copy and Paste:

# Verify the CIS service is running

oc get deploy -n kube-system
oc get pod -n kube-system

Example:

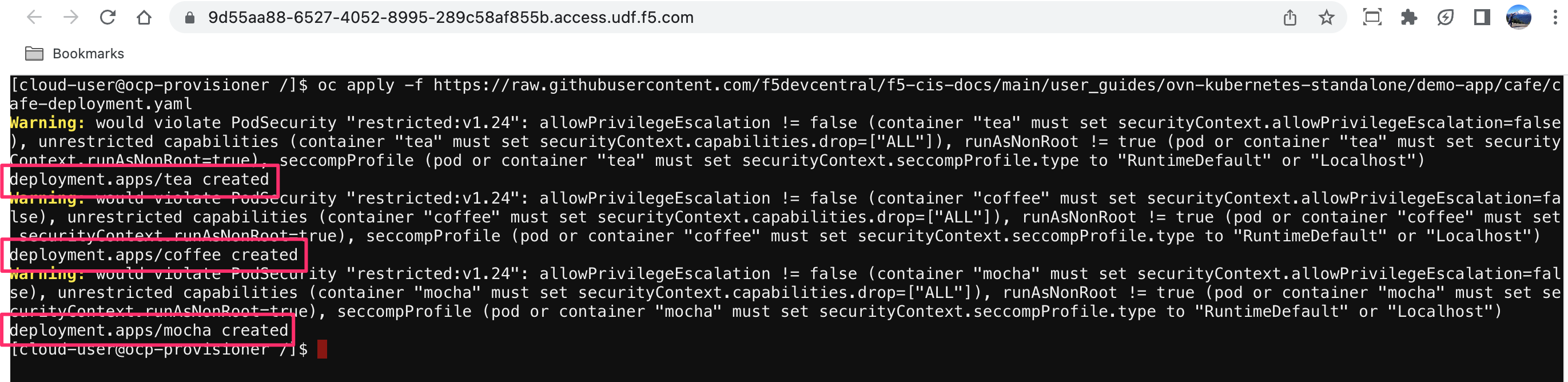

1.14 Cafe Deployment¶

Our Openshift needs an application to expose. The cafe application is a very simple nginx deployment that reads some host information and http information. It will allow us to see which pod we are accessing and the uri.

There will be three applications created, coffee, tea, and mocha. We will route to each of these different services with an OpenShift route the BIG-IP is hosting

Copy and Paste:

# Create the Cafe application

oc apply -f https://raw.githubusercontent.com/f5devcentral/f5-cis-docs/main/user_guides/ovn-kubernetes-standalone/demo-app/cafe/cafe-deployment.yaml

Example:

1.15 Cafe Service¶

Services differ from deployments as a service exposes the deployment resources to the cluster, or outside the cluster. We need to create a service so that resources inside the cluster can reach coffee, tea, and mocha. We will create our services with a ClusterIP service, this means the IP address assigned to the service, and thus the deployment will be private to the cluster.

Copy and Paste:

# Create cafe service

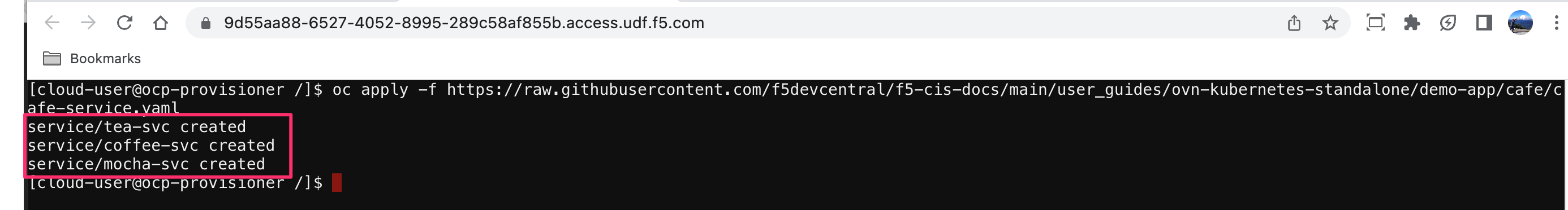

oc apply -f https://raw.githubusercontent.com/f5devcentral/f5-cis-docs/main/user_guides/ovn-kubernetes-standalone/demo-app/cafe/cafe-service.yaml

Example:

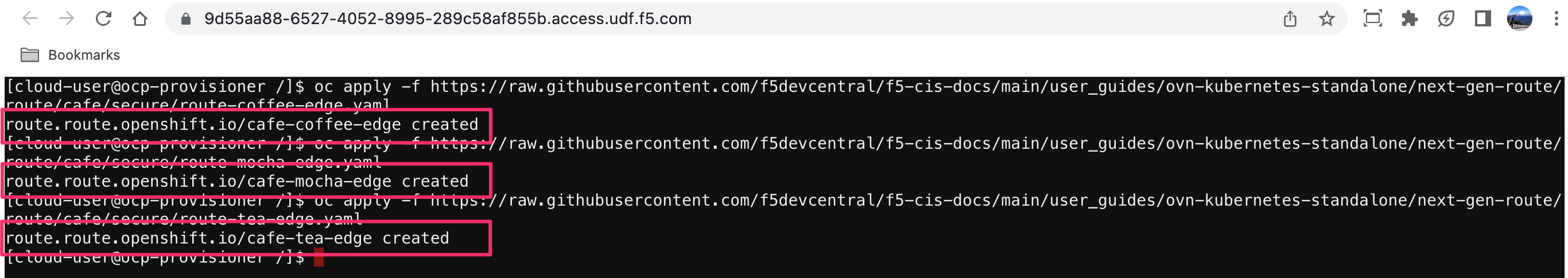

1.16 OpenShift Routes¶

In the OpenShift cluster CIS ready and listening for OpenShift resources, we also created some applications and services. Up until this point there hasnt been a connection between the two parts. OpenShift routes are what bind these two entities together. CIS will look for routes, convert them to BIG-IP configuration and post it to the BIG-IP.

The routes applied only contains a few of the available options, host, port, tls, and service name.

• Route examples

• Route options

Copy and Paste:

# Create routes for the cafe application

oc apply -f https://raw.githubusercontent.com/f5devcentral/f5-cis-docs/main/user_guides/ovn-kubernetes-standalone/next-gen-route/route/cafe/secure/route-coffee-edge.yaml
oc apply -f https://raw.githubusercontent.com/f5devcentral/f5-cis-docs/main/user_guides/ovn-kubernetes-standalone/next-gen-route/route/cafe/secure/route-mocha-edge.yaml
oc apply -f https://raw.githubusercontent.com/f5devcentral/f5-cis-docs/main/user_guides/ovn-kubernetes-standalone/next-gen-route/route/cafe/secure/route-tea-edge.yaml

Example:
